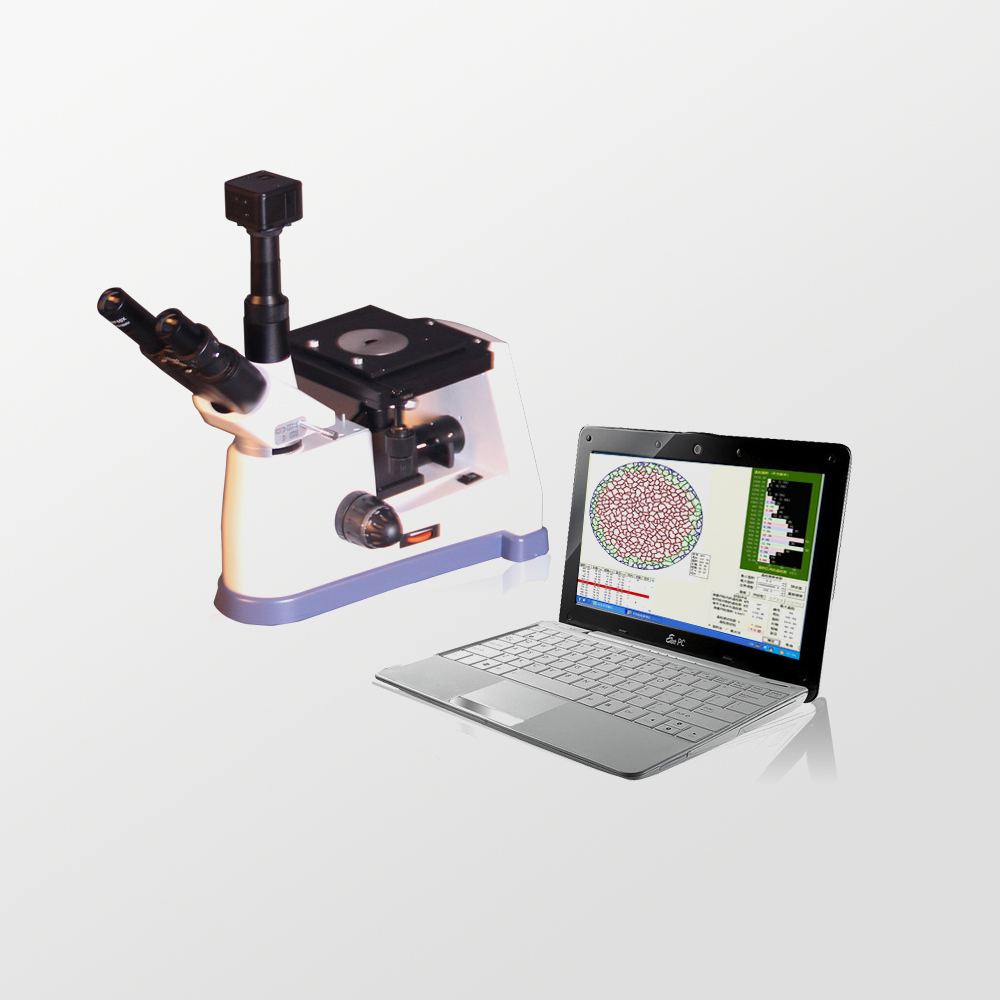

JB407V Digital Metallurgical Microscope is used in factories and labs for iddentifying, analyzing and inspecting metal structures. The hardware works through the software to make automatic assessment and report to metallurgical structures and components quickly and accurately. By using computers to collect and process images, making graphics and reports. The user can manage data report, retrieve and print photos automatically.
|
Main Technical Parameters |
|
|
Eyepiece |
10X / Ø18mm / Cross Scale 0.1mm |
|
Object Lens ( A-PLAN ) |
4X/0.1W.D.25mm, 10X/0.25W.D.11mm, 20X/0.4W.D.9mm, 40X/0.6W.D.3.8mm, |
|
Stage |
172mm*142mm / Range 30mm*30mm |
|
Focus |
Coarse & Microsyns Coaxial; 0.002mm |
|
Source |
6V / 20W adjustable halogen lamp / 220V 50Hz |
|
Camera |
1.30-3 megapixels; Capture & Shooting intergrated |
