Production Summary:

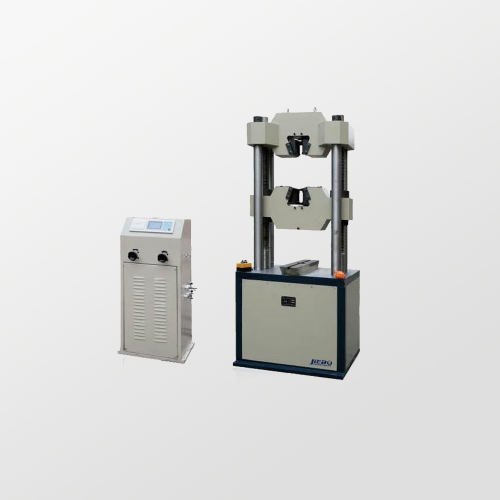

LCD Digital Display Hydraulic Universal Testing Machine is used to a variety of metal materials, tensile,
compression, bending, shearing accompanied by increased shear test can be done, can be used as plastic,
concrete, cement and other non-metallic materials, compression tests, with simple accessories to complete
the chain tape , wire, welding rod, tile's wide range of performance tests and components.This machine adopt
under the fuel tank-mounted machine, low profile, light weight, especially for the engineering construction sector.
Technical Parameters:
|
Max load |
100kn |
300kn |
600kn |
1000kn |
|||||
|
Range |
whole journey didn't sub-file ,equivalent 3 grade |
||||||||
|
Test force measuring range |
4%-100%FSKN |
||||||||
|
Test Force showed the relative error |
≤indicating value±1% |
||||||||
|
Test Force Resolution |
0.01KN |
||||||||
|
Displacement measurement resolution |
0.01mm |
||||||||
|
Max tensile test space |
550mm |
650mm |
750mm |
||||||
|
Max compression space |
380mm |
460mm |
|||||||
|
Diameter of round specimen clamp jaw |
Φ6-Φ26m |
Φ13-Φ40mm |
|||||||
|
Thickness of flat specimen clamping jaws |
0- |
0-15/15-30mm |
|||||||
|
Maximum clamping width of the flat specimen |
70mm |
75mm |
|||||||
|
Maximum clamping width of the flat specimen(Column number) |
2 |
2/4 |
|||||||
|
Clamping method |
Manual clamping |
Automatic clamping/Manual clamping |
|||||||
|
Shear specimen diameter |
10mm |
||||||||
|
Upper and lower compression plate size |
Φ160(option 204×204)mm |
||||||||
|
The maximum distance between the fulcrum bending |
450 |
||||||||
|
Space stretching from the two pillars distance |
450 |
550 |
|||||||
|
Pump motor power |
1.1KW |
||||||||
|
Beam moves up and down motor fixed rate |
0.75KW |
||||||||
|
Net weight |
1600kg |
1800kg |
2000kg |
2600kg |
|||||
